不锈钢冲孔板

时期:2020-12-06

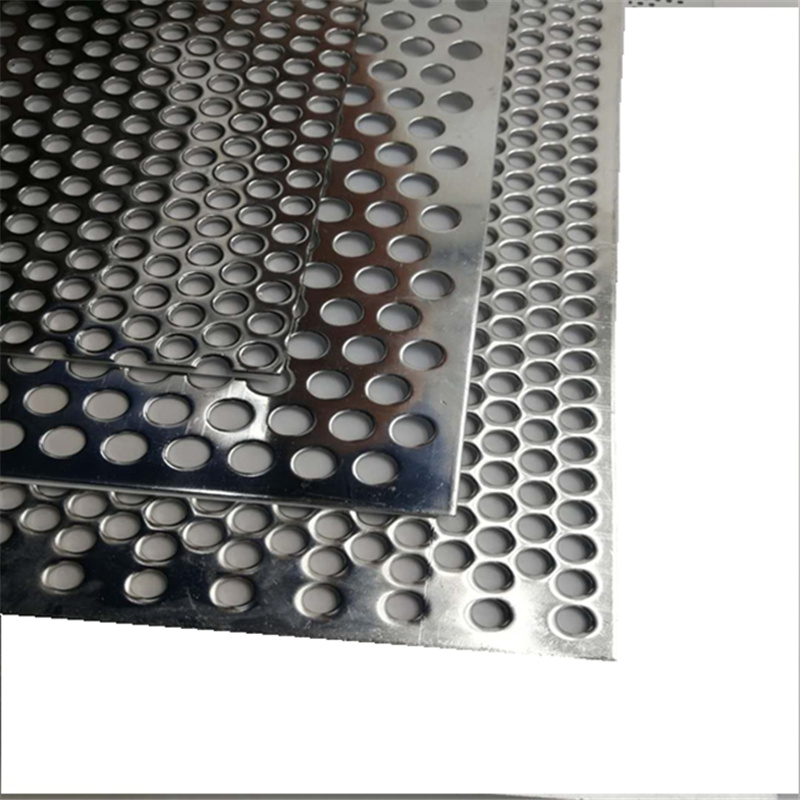

不锈钢冲孔板产品实拍



不锈钢冲孔板

不锈钢冲孔板是用不锈钢材质生产的也属于筛板中的一种,随着不锈钢冲孔板的用途越来越多,制作生产不锈钢冲孔板也是发展的很好现采用国内先进的wkc-2000型数控冲床设备生产,步进电机送料和plc操作控制,使产品精度达到+/-0.15MM,并实行规范化管理,可冲压10mm--0.2mm范围内的板材,不锈钢冲孔板材质钢板是平板状,矩形的,可直接轧制或由宽钢带剪切而成, 钢板按厚度分,薄钢板<4毫米(薄0.2毫米),厚钢板4~60毫米,特厚钢板60~115毫米,表面处理一般采用抛光大部分也不用表面处理本身不锈钢板就有亮板拉丝板板面非常的漂亮有需要的和河北逍迪丝网制品有限公司销售取得联系为你报价

Stainless steel punching plate

Stainless steel punching plate is made of stainless steel, which is also a kind of sieve plate. With more and more uses of stainless steel punching plate, the production of stainless steel punching plate is also developing very well. Now it is produced with domestic advanced wkc-2000 CNC punching machine equipment, stepper motor feeding and PLC operation control, so that the product precision reaches + / - 0.15mm, and standardized management is implemented, It can punch plates in the range of 10 mm-0.2 mm. Stainless steel punching plate is flat and rectangular, which can be directly rolled or cut from wide steel strip, According to the thickness of steel plate, thin steel plate < 4 mm (thin 0.2 mm), thick steel plate 4 ~ 60 mm, extra thick steel plate 60 ~ 115 mm, surface treatment generally adopts polishing, most of them do not need surface treatment itself, stainless steel plate has bright plate, drawing plate surface is very beautiful, it is necessary to contact Hebei Xiaodi wire mesh products Co., Ltd. for your quotation

不锈钢冲孔板表面

亮面,拉丝面,污面,磨砂面

Stainless steel punching plate surface

Bright surface, drawing surface, dirty surface, frosted surface

不锈钢冲孔板材质

最常用的是304和316也有其他的比如:不锈铁,201不锈钢板,316L不锈钢板,304L不锈钢板,321不锈钢板,310不锈钢板,317L不锈钢板,另有308不锈钢板,309不锈钢板,630不锈钢板,840不锈钢板,904不锈钢板,310S不锈钢板,进口不锈钢板,国产不锈钢板,还有食品级S30408

Stainless steel punching plate material

The most commonly used are 304 and 316, and there are others, such as stainless steel plate, 201 stainless steel plate, 316L stainless steel plate, 304L stainless steel plate, 321 stainless steel plate, 310 stainless steel plate, 317L stainless steel plate, 308 stainless steel plate, 309 stainless steel plate, 630 stainless steel plate, 840 stainless steel plate, 904 stainless steel plate, 310S stainless steel plate, imported stainless steel plate, domestic stainless steel plate, and food grade s30408

不锈钢冲孔网板孔型

长孔,圆孔,方孔,三角孔,鱼鳞孔,桥式孔,菱形孔,五角孔,六角孔,八字孔,十字孔,指甲孔,梅花孔,人字孔,工字孔,异形和个别定制图形

Pass pattern of stainless steel punching mesh plate

Long hole, round hole, square hole, triangle hole, fish scale hole, bridge hole, diamond hole, five corner hole, six corner hole, eight character hole, cross hole, nail hole, plum blossom hole, herringbone hole, I-shape hole, special-shaped and individual customized graphics

不锈钢冲孔板优点

Advantages of stainless steel punching plate
  • Stainless steel is widely used
  • Non flammable, non-toxic and tasteless, good wear resistance
  • The wear resistance of stainless steel perforated plate is 3 ~ 5 times of that of ordinary sieve plate and more than 5 times of that of ordinary rubber sieve plate
  • Anti corrosion, anti rust and wear resistance of stainless steel

不锈钢冲孔板整体清洁

Overall cleaning of stainless steel punching plate
  • The surface of stainless steel punching plate has the adhesiveness of bleach and various acids. Immediately wash it with water, then soak it with ammonia or neutral sodium bicarbonate solution, and wash it with neutral detergent or warm water

  • Stainless steel punching plate can be washed with warm water and neutral detergent. Rust caused by dirt on stainless steel surface can be cleaned with 10% nitric acid or abrasive or special cleaner. As long as we use proper maintenance methods, we can extend the service life of stainless steel and keep it clean

  • Stainless steel punching plate surface dust is easy to remove, can use soap, weak detergent or warm water washing, stainless steel surface trademark, film, with warm water, weak detergent cleaning, adhesive composition, with alcohol or organic solvent scrubbing. Wipe with a soft cloth, and then clean with neutral detergent or ammonia solution or special detergent

  • Stainless steel punching plate also has intergranular corrosion cracking, all of which will damage the passive film on the surface of stainless steel. Therefore, clean and maintain the stainless steel surface regularly to keep the surface clean and prolong the service life. Pay attention to the surface scratch when cleaning the stainless steel surface

不锈钢冲孔板订货流程

  • 订货须知:当您在我厂下单之后,您只要放心的在家坐等收货就可以了,接下来的事由我们为您完成,我们的负责人员开始下单排产,按照您的需求将您所需要的冲孔板认真的完成,然后我们会和您沟通好收货方式,为您找到您最方便接货的物流,是整车,还是配货,为您计算好,谈好最合适的价格,再为您的产品穿上一层防护衣,保证它完好无损的送到您的家里

  • 售前服务:沟通好你的需求谈好价格地址和其他个别嘱咐

  • 产品样品:尺寸不是太大成本可控制情况下是可以免费取样品的老顾客待遇不拘束

  • 生产周期:根据客户订单量的大小和您商谈好生产周期

  • 付款方式:选择我们之后,预付30%,生产完成后,我们会通知您,您将剩余的货款打到我方账户,我们开始为您发货

  • 产品包装:根据产品的精度和用途,我们会选择简装或是精装,以保证货品的安全(可以沟通)

  • 运输方式:本地有通往全国各地的物流,可以零担,整车,配货,陆运,空运,海运和TNT,DHL,FEDEX,UPS,EMS,快递,小件快运,我们会和客户商量好,为您选择最经济合适的运输方式,绝不让您多花一分钱

  • 质量保证:客户收到货后5天内,如发现材质不达标,规格有误,我们将无条件为您退货或调换,如是对方下单有误,我们只能努力帮助您改进到最好为止,这便是我们河北逍迪丝网制品有限公司最人性化的服务方式,您准备好了吗?我们时刻准备着,随时欢迎全国各地的新老客户来电咨询和来厂参观考察定做

不锈钢冲孔板价格问题

我们的卖货原则是价格公道合理,你买到好产品好服务我们挣到合理的利润,最佳!合作互赢。(价格和行业价格偏差太大都是不正常现象请慎重,必定一分钱一分货)如出现价格不正常不明白问题可以沟通,我们相信选择我们你是对的,不敢说是最好的但是是好的
